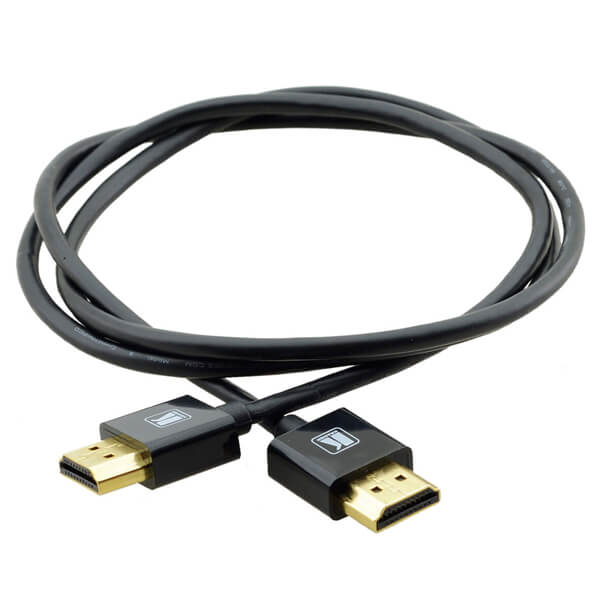

Name: Kramer Ultra Slim Flexible High Speed HDMI Cable with Ethernet
Brand: Kramer
SKU: 851
Availability: InStock

Kramer’s C−HM/HM/PICO is an ultra−slim high−speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. Supporting resolutions up to 4K@60Hz (4:4:4).

Max Resolution — 4K@60Hz (4:4:4).
High–Quality Connectors — Slim HDMI connector heads 16.0 mm wide and 8.0mm thick (5/8″ wide and 5/16″ thick).
Space Saving — A tighter bend radius combined with the low–profile connector can save up to 1″ of depth behind the equipment.
HDMI Support — Signals up to ultra–HD 4K, HDMI Ethernet Channel, 3D, x.v.Color™, Deep Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, CEC.

Video

Max Resolution for 3-6ft (0.9-1.8m) lengths: 4K60Hz (4:4:4)
Max Resolution for 10ft (3m) length: 4K60Hz (4:2:0)
Max Data Rate for 3-6ft (0.9-1.8m) lengths: 18Gbps (6 Gbps per channel)
Max Data Rate for 10ft (3m) length: 10.2Gbps (3.4 Gbps per channel)
HDMI Support: HDCP 2.2, EDID, CEC, HDR–10, HLG, Dolby Vision

Audio

Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD

Physical

Connectors: 2 Male HDMI Type A, 24K gold–plated connector
Bending radius: 36mm

Conductors

Diameter: 34AWG(7/0.06)
Material: Tinned Copper

Screening:

Type: Triple shielding

Jacket:

Material: PVC
Available Colours: Black
Diameter: 3.6± 0.15mm

Electrical:

Temperature Rating: 80⁰C
Voltage Rating: 30V
Conductor Resistance: 34AWG–1.08KΩ/KM MAX. at 20℃

Regulatory:

Rating (NEC/UL/CSA): VW–1

Part Numbers:

C–HM/HM/PICO/BK–1
C–HM/HM/PICO/BK–2
C–HM/HM/PICO/BK–3
C–HM/HM/PICO/BK–6
C–HM/HM/PICO/BK–10

Length	1FT, 2FT, 3FT, 6FT, 10FT
Colour	Black

Resources

Specification Sheet
