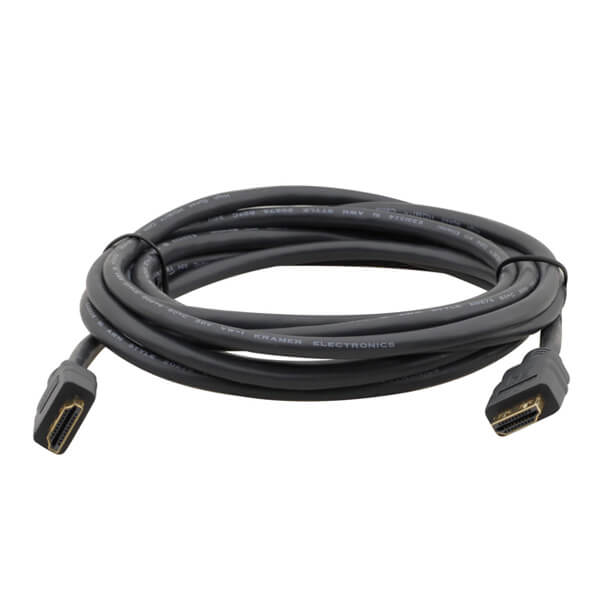

Kramer High Speed HDMI Cable with Ethernet C-MHM/MHM

Kramer’s C−MHM/MHM is a flexible high−speed 4K@60Hz (4:4:4) HDMI cable with Ethernet. It is a high−performance cable that supports signals up to 4K@60Hz (4:4:4) and HDMI Ethernet Channel, Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS−HD, CEC.

Video:
Max Resolution for 1-10ft(0.3-3m) lengths: 4K60Hz (4:4:4)
Max Resolution for 15-35ft (4.6-10.7m) lengths: 1080P 12bit
Max Data Rate for 1-10ft (0.3-3m) lengths: 18Gbps (6Gbps per channel)
Max Data Rate for 15-35ft (4.6-10.7m) lengths: 6.68Gbps (2.2Gbps per channel)
HDMI Support: HDCP 2.2, EDID, CEC, HDR–10, HLG, Dolby Vision
Audio:
Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD
Physical:
Connectors: 2 Male HDMI Type A, 24K gold–plated with K–Lock
Bending Radius: 58mm
Conductors:
Diameter: 30AWG (7/0.1)
Material: Tinned Copper
Screening:
Type: Triple shielding
Jacket:
Material: PVC

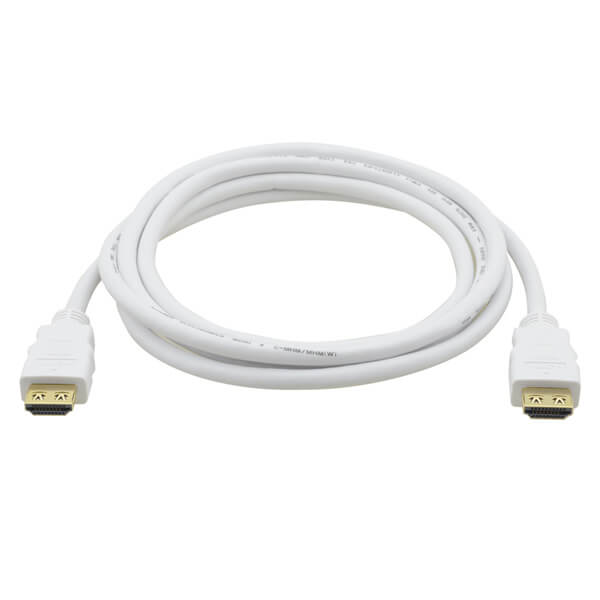

Available Colours: Black, White
Diameter: 5.8 ± 0.15mm
Electrical:
Temperature Rating: 80⁰C
Voltage Rating: 30V
Conductor Resistance: 376.96Ω/KM MAX. at 20℃
Regulatory:
Rating (NEC/UL/CSA): VW–1/CMG–FT4
RoHS: 2011/65/ EU

Part Numbers:

• C–MHM/MHM–1
• C–MHM/MHM–2
• C–MHM/MHM–3
• C–MHM/MHM–6
• C–MHM/MHM–10
• C–MHM/MHM–15
• C–MHM/MHM–25
• C–MHM/MHM–35
• C–MHM/MHM(W)–3
• C–MHM/MHM(W)–6
• C–MHM/MHM(W)–10
• C–MHM/MHM(W)–15
• C–MHM/MHM(W)–25
• C–MHM/MHM(W)–35
